Wound Drainage Reservoir is a collection of sterile devices designed to remove fluids or purulent material from a closed wound in a controlled manner. China manufacturer of Wound Drainage Reservoir with excellent quality.
1. Product Introduction of Wound Drainage Reservoir

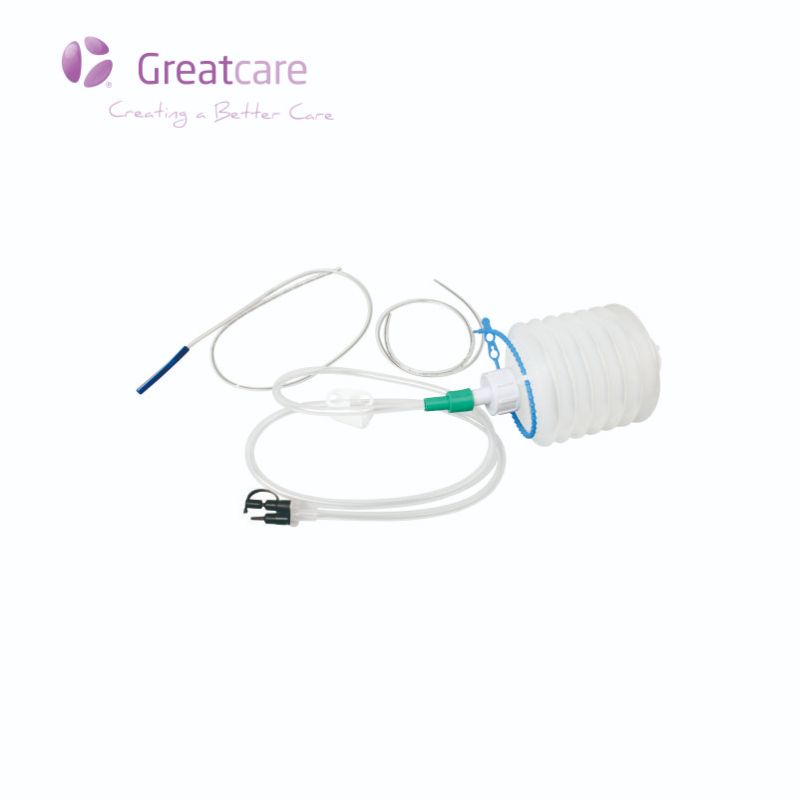

Wound Drainage Reservoir includes 3-spring evacuator, PVC tubing, Y connector, PVC drainage tube and trocar,3-spring evacuator design minimizes Collapse-Resistance. Wound Drainage Reservoir is a collection of sterile devices designed to remove fluids or purulent material from a closed wound in a controlled manner.
2. Product Specification of Wound Drainage Reservoir
|

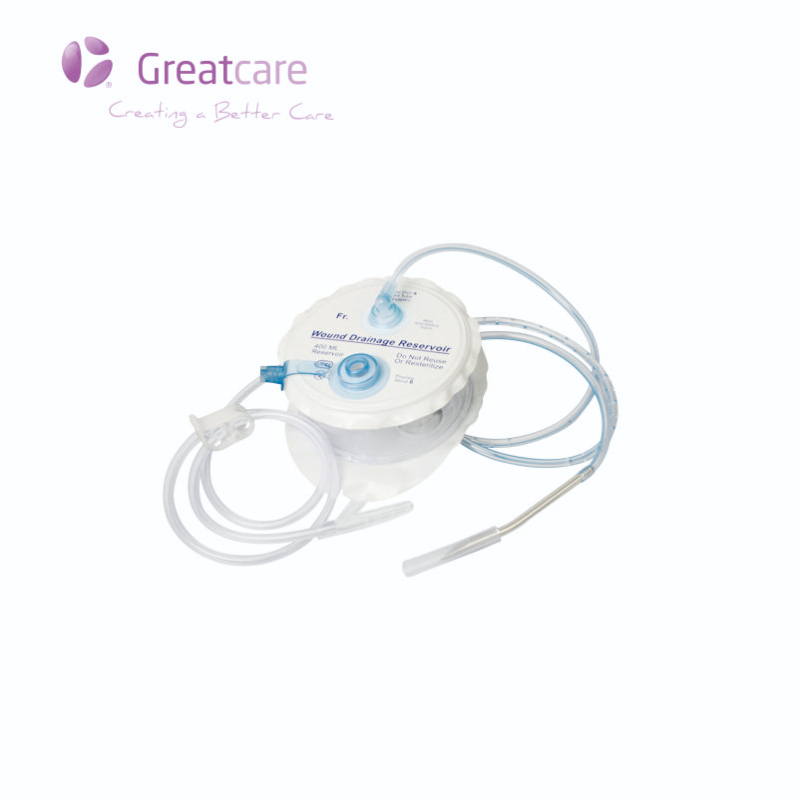

Ref. No.: |
Capacity: |
Size: |
Type: |
|
GCD305011 |
400ml |
8Fr/ch |
three spring |
|
GCD305012 |
400ml |
10Fr/ch |
three spring |
|
GCD305013 |
400ml |
12Fr/ch |
three spring |
|
GCD305014 |
400ml |
14Fr/ch |
three spring |
|
GCD305015 |
400ml |
16Fr/ch |
three spring |
|
GCD305016 |
400ml |
18Fr/ch |
three spring |
|
GCD305031 |
200ml |
8Fr/ch |
three spring |
|
GCD305032 |
200ml |
10Fr/ch |
three spring |
|
GCD305033 |
200ml |
12Fr/ch |
three spring |
|
GCD305034 |
200ml |
14Fr/ch |
three spring |
|
GCD305035 |
200ml |
16Fr/ch |
three spring |
|
GCD305036 |
200ml |
18Fr/ch |
three spring |
|
Ref. No.: |
Capacity: |
Size: |
Type: |
|
GCD305021 |
400ml |
8Fr/ch |
Wound drainage system(hollow) |
|
GCD305022 |
400ml |
10Fr/ch |
Wound drainage system(hollow) |
|
GCD305023 |
400ml |
12Fr/ch |
Wound drainage system(hollow) |
|
GCD305024 |
400ml |
14Fr/ch |
Wound drainage system(hollow) |
|
GCD305025 |
400ml |
16Fr/ch |
Wound drainage system(hollow) |
|
GCD305026 |
400ml |
18Fr/ch |
Wound drainage system(hollow) |
|

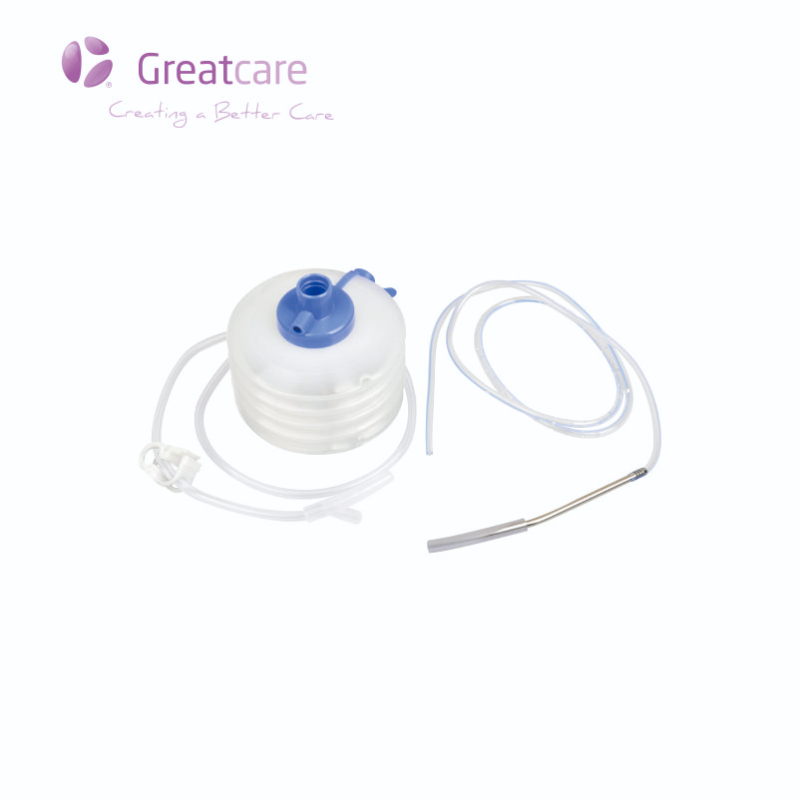

Ref. No.: |
Capacity: |
Size: |
Type: |
|
GCD305029 |
500ml |
8Fr/ch |
Single spring |
|
GCD305041 |
500ml |
10Fr/ch |
Single spring |
|
GCD305042 |
500ml |
12Fr/ch |
Single spring |
|
GCD305043 |
500ml |
14Fr/ch |
Single spring |
|
GCD305044 |
500ml |
16Fr/ch |
Single spring |
|
GCD305045 |
500ml |
18Fr/ch |
Single spring |
|

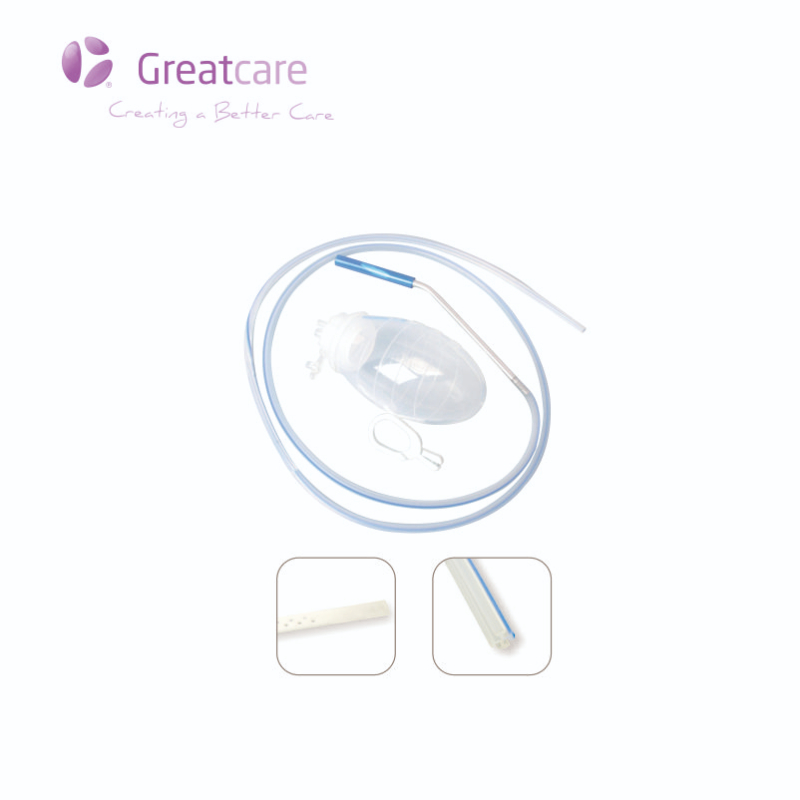

Ref. No.: |
Capacity: |
Size: |
Type: |
|
GCD3050 |
100ml,200ml,400ml |
7Fr,10Fr,12Fr,14Fr,15Fr,18Fr,20Fr,22Fr,24Fr |
Silicone wound Drainage Reservoir |
3. Feature of Wound Drainage Reservoir
● The system is composed of the needle part and drainage bottle part.
● The special puncture needle followed by a drainage tube can go through skin and tissue to reach the areas of hematoma or ichors, avoiding big incision made by bistouries.
● With small holes in the drainage tube, the secretion can be easily drained off by a suction machine.
● The drainage tube with metal line inside can be detected by x ray.
● Safely, smoothly and completely drainage.
4. Direction for use of Wound Drainage Reservoir
To Activate:
1. Following placement of wound tubing inside body. Completely insert reservoir tube into suction port A.
2. Insert plug into pouring spout B just far enough to engage the flanges. Be careful not to impede air flow through pouring spout
3. Close Clamp on reservoir tube.
4. Fully compress the reservoir.
5. Completely insert the plug into the pouring spout.
6. Release clamp to activate.
To Empty:
1. Determine the volume of exudate using calibrations on side of
reservoir.
2. Engage clamp on unperforated reservoir tube.
3. Remove plug from pouring spout B and empty.
To Reactivate:
1. Be sure reservoir is completely empty.
2. Repeat steps 2 through 6.
5. FAQ of Wound Drainage Reservoir
Q: If OEM is acceptable?
A: Yes, our designer is very professional, we could make design as per your idea for packages.
Q: What languages does your team speak?
A: We have English, Spanish, German salesman.
Q: What are your prices?
A: Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Q: Do you have a minimum order quantity?
A: Yes, we require all international orders to have an ongoing minimum order quantity.
