Greatcare Disposable Infusion Pump (Elastomeric Pump) is a non-electric, gravity-free device designed for continuous and precise drug delivery. Ideal for postoperative pain management, antibiotic therapy, and ambulatory care, it empowers patient mobility and simplifies clinical procedures. Manufactured with 22 years of expertise, our pump ensures reliability and safety with key approvals including CE and ISO13485, providing a cost-effective solution for hospitals and homecare settings.
Product Introduction

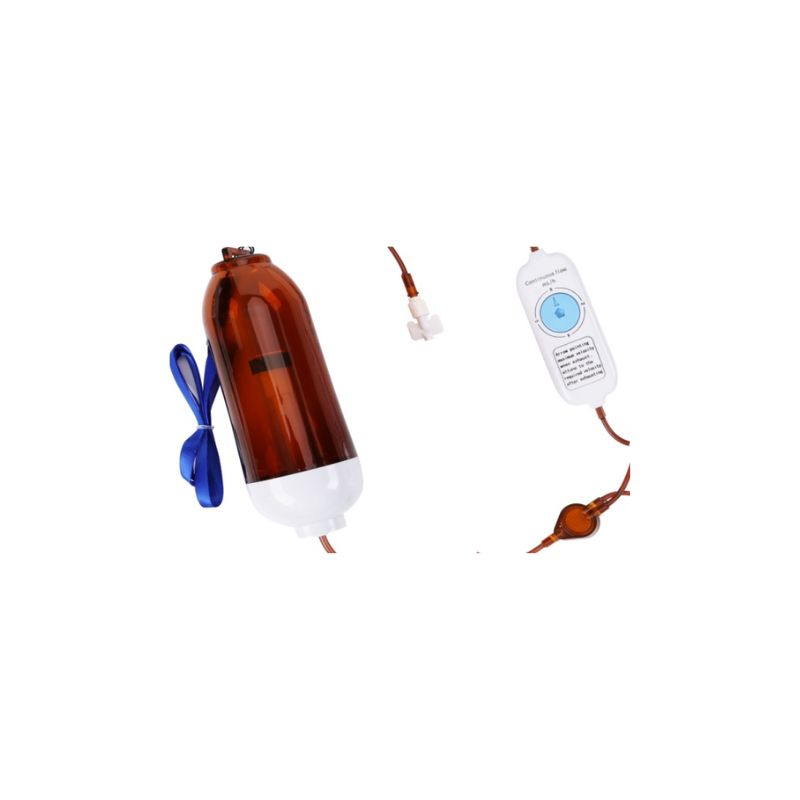

Disposable infusion pump is used for continuous (fixed or adjustable) and/or self-control infusion in clinical infusion therapy. It is applicable to the administration of analgesic drugs for intraoperative, postoperative, labor, as well as analgesic chemotherapy for cancer patients. The typical full structure consists mainly of strap, silicone liquid storage device, single-way filling port, tubing, clamp, filter, self-control device(pca), multiple regulator device, transparent three way stopcock, luer lock, protective cap.
Product Specification
| Item | Data |
| Volume | 100ml, 150ml, 200ml, 250ml, 275ml and 300ml |
| Flow Rate |
1. 2-4-6-8 ml/h 2. 0-1-2-3-4-5-6-7 ml/h 3. 0-2-4-6-8-10-12-14 ml/h 4. 0-5-10-15-20-25-30-35 ml/h |
1.Postoperative Pain Management: Widely used in PCA and ERAS protocols for its cost-effectiveness and ease of use.
2. Advanced flow control technology ensures stable and accurate drug administration.
3. Frequently used in continuous chemotherapy infusion (e.g. 5-FU to improve efficacy and reduce side effects.
Directions for use
● First inspect the integrity of the package, and then take product from the sterile package, and inspect the integrity of product.
● Verify clamp is closed, remove the cap from the filling port and fill the balloon reservoir with the drug using a syringe (we recommend using a luer lock type syringe).
● When filling drug, please make sure there is no air in syringe, then infuse the medicine. (The balloon reservoir can exhaust itself. If there is few air, it can exclude after a while later.)
● When balloon reservoir is filled up with the correct liquid volume, disconnect the syringe and close the filling port with the cap.
● After medicine has been added, open the clamp, remove the yellow card from the self-control(PCA), and press the PCA button 1~2 times, in order to speed up the liquid flow through the tubing. When the medicine flows from the end, close the clamp and screw the tubing end with the protective cap.
● The self-control device(PCA) is the function button that the patient can use to control the additional medicine when in continuous medicine infusion position. By pressing the PCA button, the patient can add a limited quantity of medicine in respect with doctor’s instruction, as he needs.
● The multiple regulator device should be used only by qualified trained physician, the key should be keep by specially-assigned person.
● To administer the drug to the patient, check there is no bubbles in the infusion line, remove the protective cap, attach the connector to the patient’s line and open the clamp.
● The flow rate will be a little faster (within the standard scope) during the 1~2 first hours of use. That is due to the physical characteristic of the silicone material.
● In the test conditions, temperature (23±2) ℃, relative humidity (50±5)% and atmospheric pressure of 86 KPa~106KPa, using purified water or distilled water for level infusion (the balloon reservoir and the end Luer lock is at the same level), mean flow rate infusion rate accuracy is±15%, the adjustable flow rate shall have a tolerance of ±20%.
FAQ
Q: What is the delivery time if I place my order?
A: Delivery time is around 45 days, if you have special requirements, pls check with us, we will try our best to meet you.
Q: Can you supply the relevant documentation?
A: Yes, we can provide most documentation including CE, ISO13485, FSC, FDA where required.
Q: Can I get samples before my order ?
A: Free samples are available.
